Composition: Chimeric DNA/RNA oligo
Ordering path: Order as a Custom RNA Oligo
Typical length: ~30 bases
Scales: 100 nmol to large scale synthesis
Purification: Standard desalt; RNase-free HPLC available on request
Website ordering symbol: Use lower case “r” in front to specify ribonucleotide bases (e.g,, ACTGCrGrGrG)
Underrepresentation of cDNA 5' ends
Emerging high-throughput technologies such as RNA-seq have enabled functional dissection of complex transcriptomes with a minimal amount of RNA input. Accurate quantification of individual transcripts or identification of unknown transcription start sites requires an efficient approach to convert mRNA molecules into full-length cDNA. However, conventional cDNA construction methods usually result in an underrepresentation of the 5’ ends of cDNA. This outcome poses a significant technical obstacle for researchers interested in transcriptome analysis in non-model organisms or in gene discovery [1,2].
SMART technology and template switching oligo secure 5' end sequences
Described originally in 2001, a strategy frequently referred to as “SMART” (switching mechanism at the 5' end of the RNA transcript) technology (Takara Bio USA, Inc) has shown promise in generating full-length cDNA libraries, even from single-cell–derived RNA samples [1,3]. This strategy relies on the intrinsic properties of Moloney murine leukemia virus (MMLV) reverse transcriptase and the use of a unique template switching oligonucleotide (TS oligo, or TSO). During first-strand synthesis, upon reaching the 5’ end of the RNA template, the terminal transferase activity of the MMLV reverse transcriptase adds a few additional nucleotides (mostly deoxycytidine) to the 3' end of the newly synthesized cDNA strand. These bases function as a TS oligo-anchoring site. Upon base pairing between the TS oligo and the appended deoxycytidine stretch, the reverse transcriptase “switches” template strands, from cellular RNA to the TS oligo, and continues replication to the 5' end of the TS oligo. By doing so, the resulting cDNA contains the complete 5' end of the transcript, and universal sequences of choice are added to the reverse transcription product. Along with tagging of the cDNA 3' end by oligo dT primers, this approach makes it possible to efficiently amplify the entire full-length transcript pool in a completely sequence-independent manner . See Figure 1 for a schematic of this method.

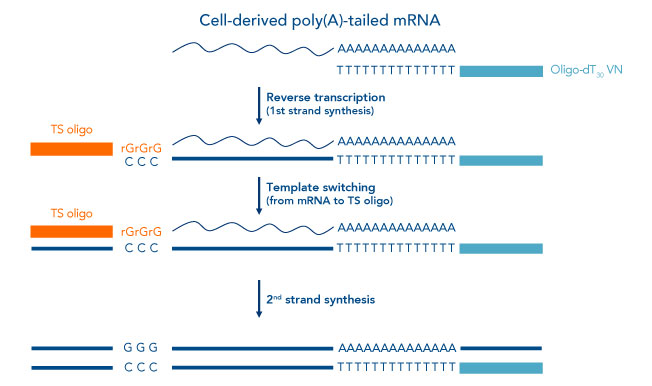

Figure 1. Generate full-length, double-stranded cDNA library construction through use of Oligo-dT30 VN and a template switching oligo (TS oligo, TSO).
TS oligo structure
The simple version of a TS oligo is a DNA oligo sequence that carries 3 riboguanosines (rGrGrG) at its 3' end . The complementarity between these consecutive rG bases and the 3' dC extension of the cDNA molecule empowers the subsequent template switching . A more recent study suggested replacing the 3' most rG with a locked nucleic acid base, possibly due to the enhanced thermostability of the locked nucleic acid monomer, which would be advantageous for base pairing . Interestingly, a systematic study was conducted in 2013 to compare the multiple modified TS oligo versions side-by-side, and the data indicated that RNA/DNA hybrids provide a superior level of 5' cap-specific enrichment, even though the DNA/locked nucleic acid duplexes were expected to be more thermodynamically favored .
Driven by the growing interest in single-cell transcriptomics, alternative modification patterns have been explored to further improve TS oligo performance. For instance, in 2010 researchers reported an approach to reduce library background and thereby improve cDNA yield by incorporating isomeric nucleotides into the TS oligo . In this study, 2 modified bases, iso-dC and iso-dG, were appended to the 5’ end of the TS oligo. These 2 modifications, which are chemical variants of cytosine and guanine, respectively, form hydrogen bonds with each other but not with naturally occurring C and G nucleotides. As anticipated, this modified version demonstrated efficacy in minimizing the concatenation of TS oligos, which typically results from cycles of reverse transcriptase activity [8,9].
Ordering TS oligos
Taken together, TS oligos attach a universal primer-binding site through the activity of MMLV reverse transcriptase, enabling exclusive amplification of intact cDNA molecules. TS oligos containing 3' rGs can be ordered from the Custom RNA Oligos ordering page on the IDT website. You can further customize your TS oligo with unique properties by incorporating additional chemical modifications from this same ordering page.
Contact us at email@example.com with any questions about ordering modified oligos or to discuss your experimental design with our scientific applications experts.
