Why Alt-R A.s. Cas12a (Cpf1) Ultra?
CRISPR-Cas12a (Cpf1) is an RNA-guided DNA endonuclease that is an alternative to the commonly used Streptococcus pyogenes Cas9 (S.p. Cas9) enzyme . Unlike S.p. Cas9, which recognizes NGG PAM sequences [2, 3], Cas12a recognizes TTTV (V = A/G/C) PAM sites, thereby permitting genome editing in organisms with AT-rich genomes. A.s. Cas12a is an attractive option for genome editing applications due to its AT-rich PAM sequence , its highly specific DNA recognition and cleavage mechanism [4, 5], and its native reliance on a single, short guide RNA. However, comparison studies showed that the wild-type A.s. Cas12a enzyme lacks the potency and site-to-site reliability of S.p. Cas9 when used with relatively GC-rich genomes such as the human genome. Thus, we undertook a directed evolution approach to improve on the performance of the wild-type enzyme. In this article, we describe our method of developing Alt-R A.s. Cas12a (Cpf1) Ultra, its cleavage activity, and its performance with TTTV PAM site selection. In addition, we demonstrate that A.s. Cas12a Ultra exhibits increased editing efficiency at TTTN (N = A/G/C/T) PAM sites across different cell lines, outperforms both wild-type A.s. and L.b. Cas12a proteins at 30 and 37°C, and significantly increases homology-directed repair (HDR) rates.
Isolation of an A.s. Cas12a mutant with increased cleavage activity
CRISPR enzymes function natively in bacteria as part of a primitive immune system that helps to maintain genomic integrity from invading bacteriophages . The finding that these enzymes, which are simply RNA-targeted DNA endonucleases, could introduce targeted dsDNA breaks in human cells was quite remarkable . Nevertheless, these enzymes did not evolve to work in the mammalian nucleus and are not always perfectly adapted to function in that environment. S.p. Cas9, for example, can facilitate an alarming amount of unwanted off-target editing when targeting certain genomic sites . This finding is perhaps not surprising given that eukaryotic genomes are generally far larger than those of prokaryotes, and thus S.p. Cas9 did not evolve specificity mechanisms adequate for editing the human genome. At IDT, we have given nature a boost by applying directed evolution principles to both S.p. Cas9 and A.s. Cas12a to make them better suited for genome editing in eukaryotic cells.
Previously, to address the low fidelity of S.p. Cas9, we engineered the Alt-R HiFi Cas9 protein, which is a mutant form of S.p. Cas9 that was evolved to increase its target site specificity . While fidelity (i.e., site-specific targeting as opposed to targeting and cleavage of unintended sites) was our main concern with S.p. Cas9, the principal issue we encountered with A.s. Cas12a was poor site-to-site consistency in terms of editing efficiency. We therefore set out improve the reliability of A.s. Cas12a without compromising its high specificity and AT-rich PAM site preference. We developed a bacterial-based selection assay to select for A.s. Cas12a mutants that demonstrate increased cleavage activity (Figure 1). We selected A.s. Cas12a variants with cleavage efficiencies that are higher than those observed with the wild-type enzyme at non-canonical TTTT PAM sites for two reasons. First, this specific motif is significantly more prevalent throughout the human genome than the other three TTTV motifs. Second, A.s. Cas12a generally recognizes TTTT PAM sequences poorly. After multiple rounds of selections, we successfully enriched several mutations, the best of which ultimately made up the Alt-R A.s. Cas12a Ultra protein.

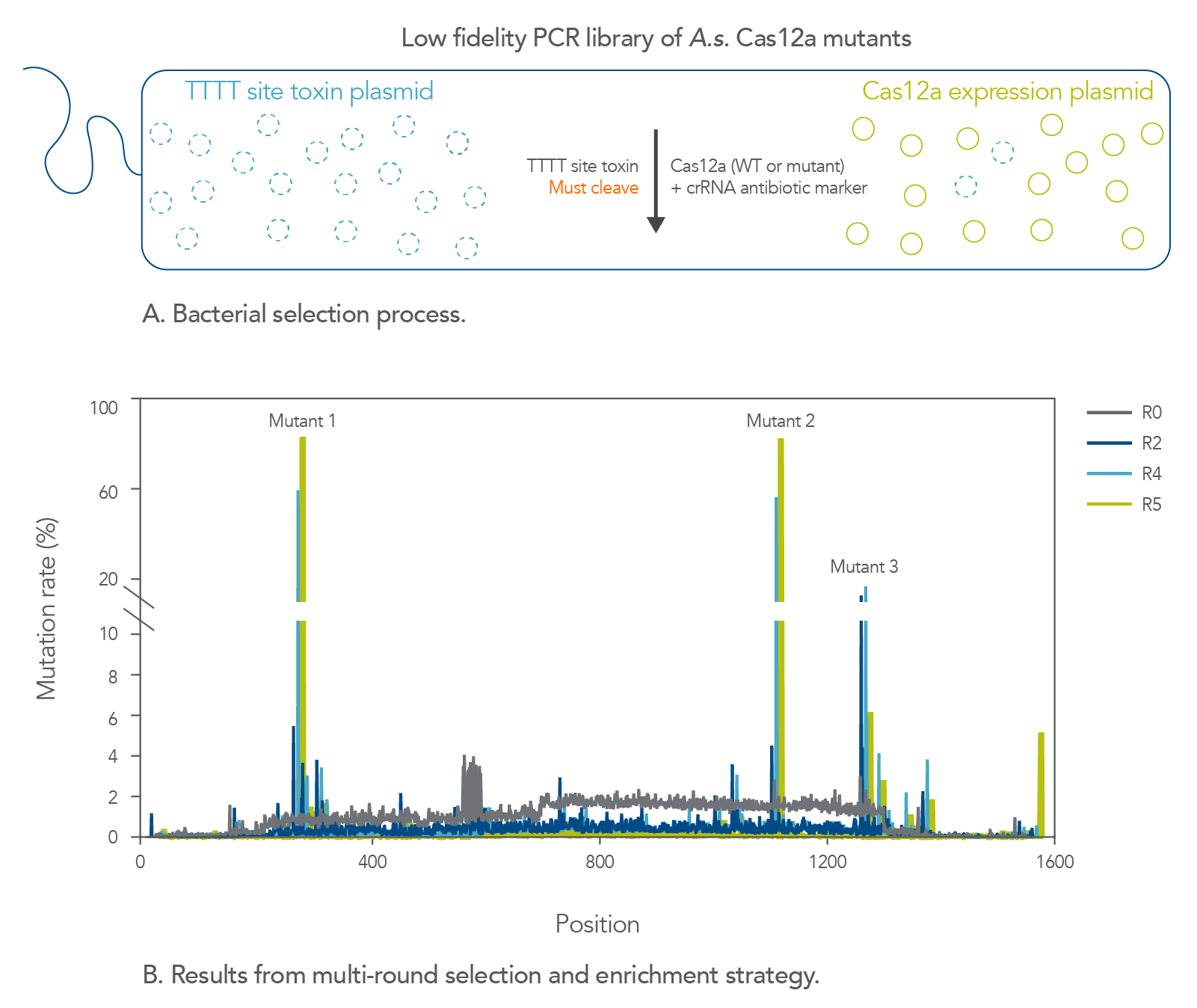

Figure 1. Directed evolution to select and enrich for A.s. Cas12a mutations with increased cleavage efficiency. (A) A schematic of the bacterial selection process used to isolate high-activity mutants of A.s. Cas12a. (B) An illustration of a multi-round selection and enrichment strategy where the highest activity mutations are identified within the A.s. Cas12a open reading frame. Briefly, a mutant library of A.s. Cas12a clones (generated by low-fidelity PCR) was introduced into a bacterial activity selection strain, and the surviving mutants were pooled and rescreened several times to enrich the most promising mutations. Multiple rounds of selection and enrichment for higher activity Cas12a mutants are denoted with “R” followed by a number representing the round of selection. The best mutations ultimately made up the Alt-R A.s. Cas12a Ultra protein.
Alt-R A.s. Cas12a Ultra dramatically increases editing efficiency and HDR at TTTN PAM sites
The cleavage efficiency of A.s. Cas12a Ultra was compared to that of the wild-type Cas12a V3 enzyme at both TTTV and TTTN PAM sites when delivered into human cells by electroporation as ribonucleoprotein (RNP) complexes. We examined 216 guides in HEK-293 cells (96 sites) and Jurkat cells (120 sites). For the Cas12a Ultra nuclease with TTTV PAM selection, the average editing efficiency was 88% (indels, determined by NGS), and the median editing efficiency was 99% (Figure 2). These data were further examined to analyze the performance at TTTA, TTTC, TTTG, and TTTT PAM sites. Remarkably, the Cas12a Ultra nuclease dramatically increased performance at all TTTN PAMs, including notoriously difficult-to-edit TTTT PAM sites (Figure 3). Importantly, the Alt-R Cas12a (Cpf1) Electroporation Enhancer was co-delivered in all these experiments. As we had previously shown with wild-type A.s. Cas12a V3 nuclease, we now found that the Cas12a Electroporation Enhancer also dramatically increases the performance of A.s. Cas12a Ultra nuclease (Figure 4). The Cas12a Ultra nuclease was examined in multiple different human cell lines and performed well in all cases (Figure 5).

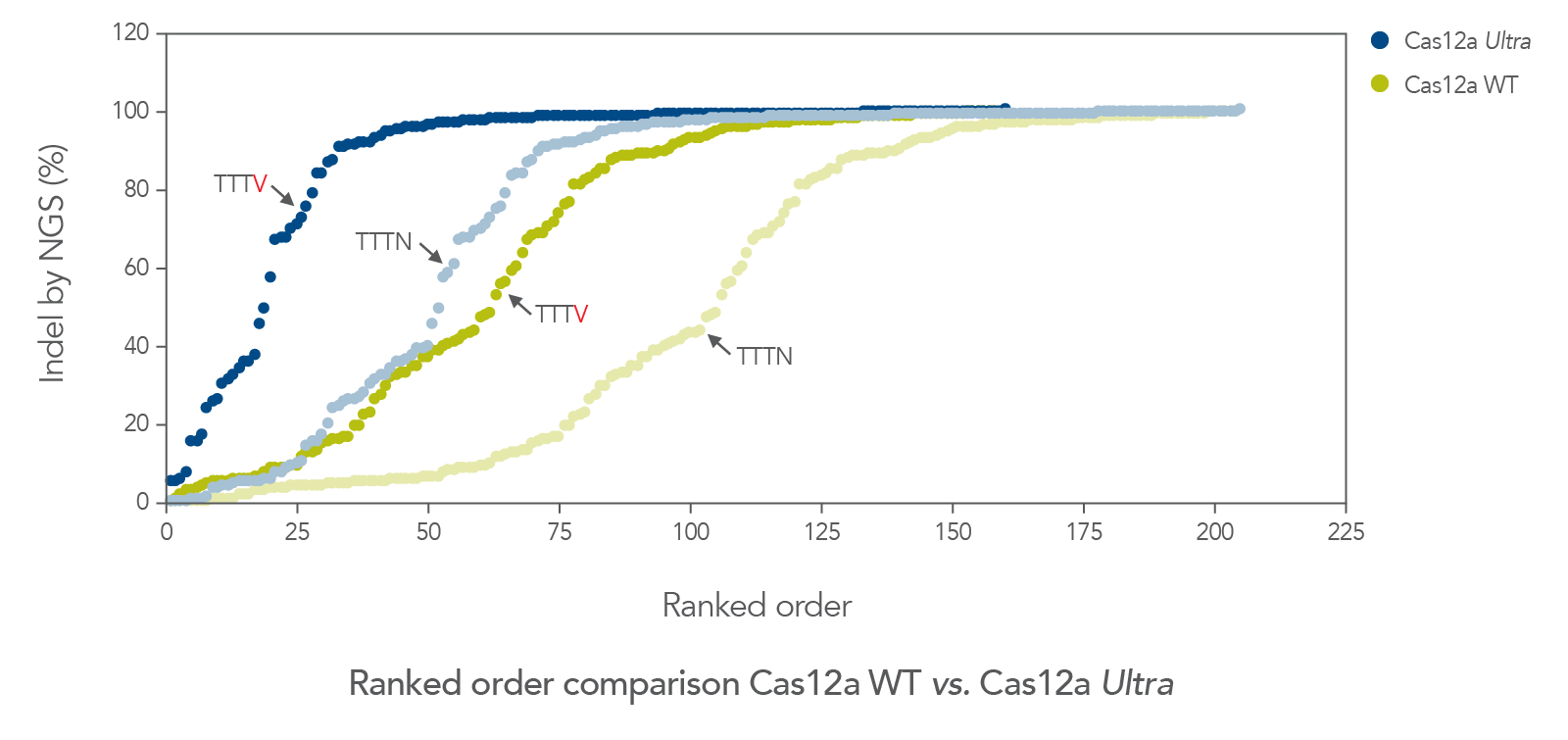

Figure 2. Alt-R A.s. Cas12a Ultra protein demonstrates superior performance with TTTV target site selection. Dots represent rank-ordered editing efficiency of 216 guides that target TTTV (dark shading) or TTTN (light shading) PAM sites which were complexed to wild-type Cas12a V3 (green) or Cas12a Ultra (blue) and delivered into HEK-293 cells (96 sites) and Jurkat cells (120 sites). Human cells were transfected with RNP as instructed in the user guide for Alt-R CRISPR-Cas12a—RNP electroporation with an Amaxa® Nucleofector® system (Lonza). Editing efficiency was determined 48 hr after electroporation using NGS (rhAmpSeq amplicon sequencing).

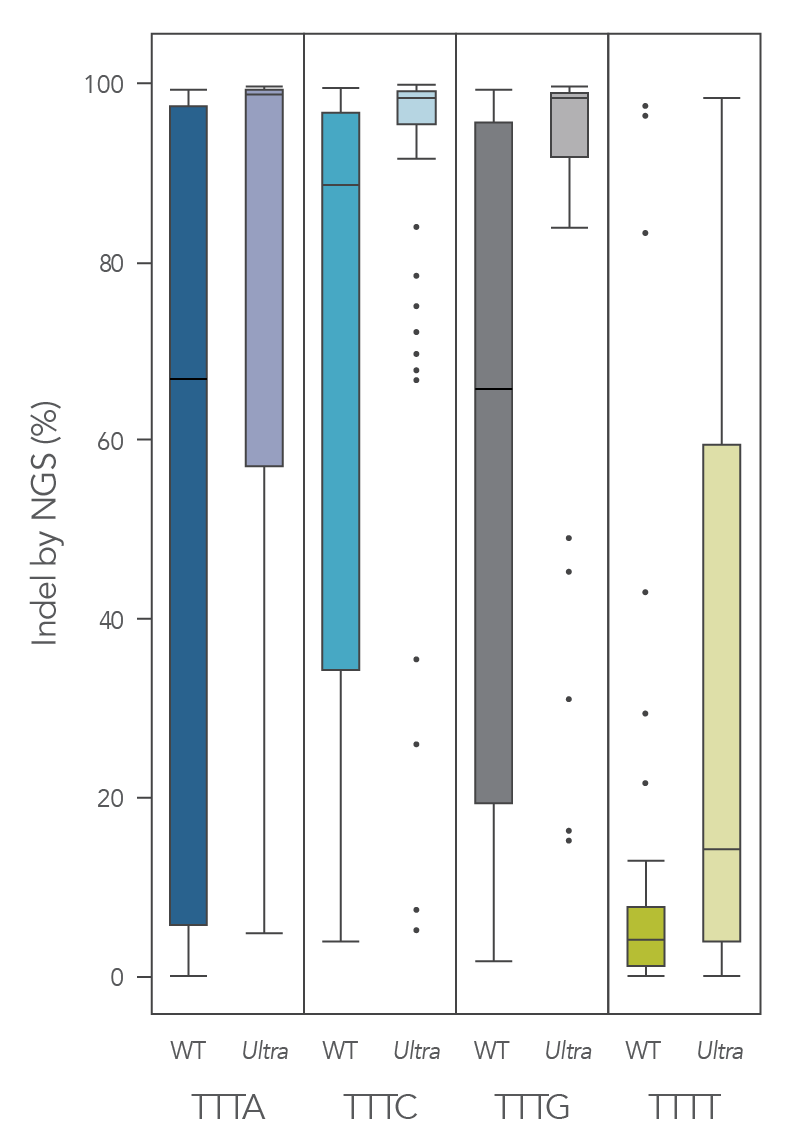

Figure 3. Alt-R A.s. Cas12a Ultra demonstrates increased editing efficiency at TTTA, TTTC, TTTG, and TTTT PAM sites. RNPs were formed with wild-type A.s. Cas12a V3 or A.s. Cas12a Ultra, complexed to 216 individual crRNAs targeting distinct loci on the human genome. RNP complexes (4 μM) were delivered into Jurkat cells (120 sites) or HEK-293 cells (96 sites) via a Nucleofector system (Lonza) in the presence of Alt-R Cas12a (Cpf1) Electroporation Enhancer. Editing efficiency was determined 48 hr after electroporation using NGS (rhAmpSeq amplicon sequencing).

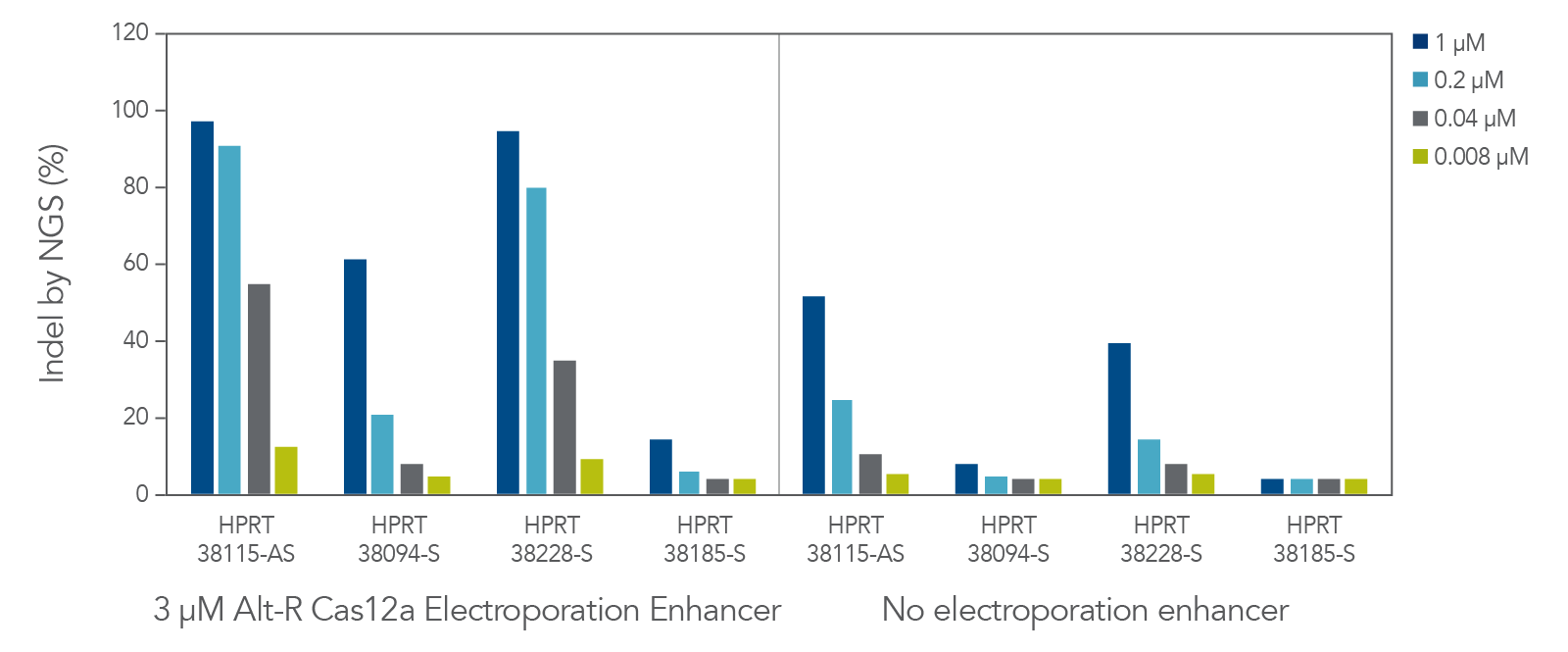

Figure 4. Alt-R Cas12a (Cpf1) Electroporation Enhancer improves A.s. Cas12a Ultra editing efficiency. HEK-293 cells were transfected with the indicated concentration of RNP (A.s. Cas12a Ultra nuclease complexed with Alt-R CRISPR-Cas12a crRNA) as instructed in the user guide, Alt-R CRISPR-Cpf1—RNP electroporation, Amaxa Nucleofector system. Electroporation reactions contained either 3 µM Alt-R Cas12a Electroporation Enhancer (left) or no added enhancer (right). Genomic DNA was isolated 48 hr after electroporation, and total editing efficiency was determined by NGS (rhAmpSeq amplicon sequencing).

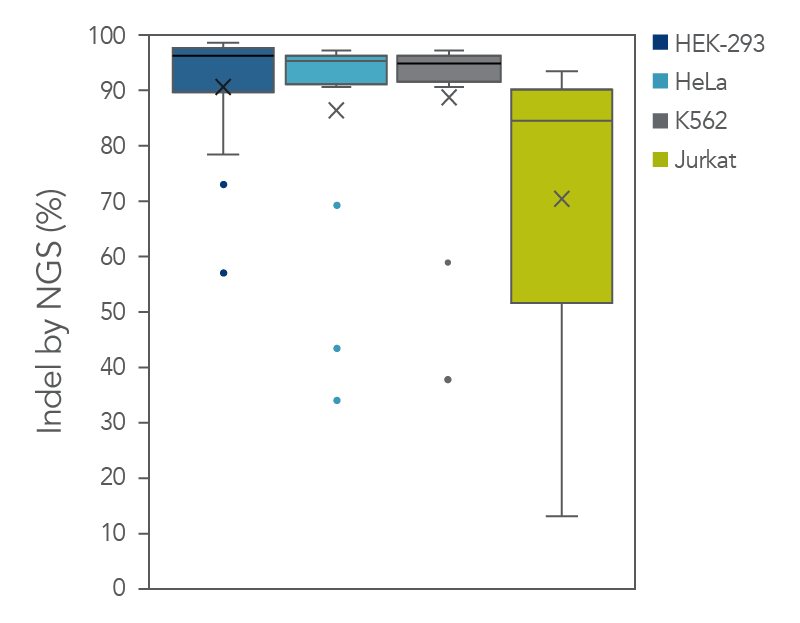

Figure 5. Alt-R A.s. Cas12a Ultra demonstrates high performance in multiple human cell types. RNPs were formed with A.s. Cas12a Ultra, complexed to 16 individual crRNAs that target distinct loci on the human genome. RNP complexes (4 μM) were delivered into the indicated cell types via a Nucleofector system (Lonza) in the presence of Alt-R Cas12a (Cpf1) Electroporation Enhancer. Editing efficiency was determined 48 hr after electroporation using NGS (rhAmpSeq amplicon sequencing).
Alt-R A.s. Cas12a Ultra is a universal Cas12a solution that increases overall HDR rates
A.s. Cas12a protein, in the wild-type form, performed poorly at low temperatures (25–32ºC) required for delivery into ectothermic organisms such as plant species. In these cases, the Lachnospiraceae bacterium variant L.b. Cas12a has typically been used, as this protein mitigates efficient editing at low temperatures. We compared editing efficiencies in live cells at both 30 and 37ºC, and we found that the A.s. Cas12a Ultra nuclease dramatically outperforms both wild-type A.s. Cas12a V3 and L.b. Cas12a proteins at all temperatures and is a universal Cas12a solution to achieve high editing efficiencies (Figure 6). Finally, we examined the ability of A.s. Cas12a Ultra nuclease to facilitate high levels of HDR in Jurkat cells, typically known for low rates of HDR.
We compared Cas12a Ultra-dependent HDR rates (analyzed by NGS) to those obtained with the wild-type A.s. Cas12a V3 nuclease, and we found that the Cas12a Ultra nuclease approximately doubled HDR rates when using Ultramer ssDNA oligonucleotide donor templates (Figure 7).

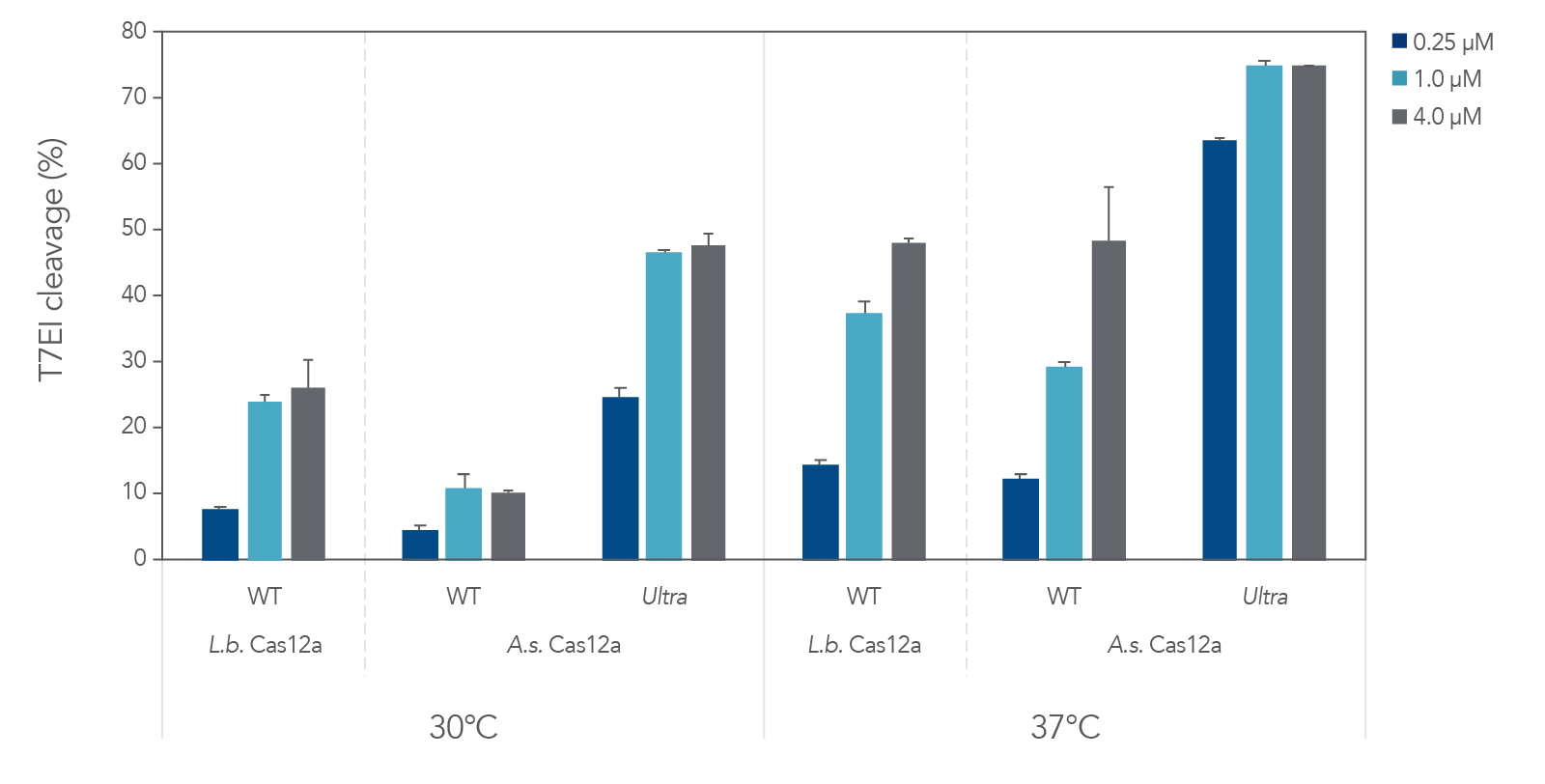

Figure 6. Alt-R A.s. Cas12a (Cpf1) Ultra outperforms both wild-type A.s. Cas12a V3 and L.b. Cas12a proteins at 30 and 37°C. Comparison of editing efficiency between RNP complexes [0.25 μM (dark blue), 1.0 μM (light blue), and 4.0 μM (gray)] formed with A.s. Cas12a Ultra, wild-type A.s. Cas12a V3, and L.b. Cas12a proteins delivered by electroporation, with the Cas12a electroporation enhancer, via a Nucleofector system (Lonza) into HEK-293 cells. RNP complexes were formed at room temperature, while HEK-293 cells were maintained pre- and post-electroporation at 30 or 37°C as indicated. Editing efficiency was determined 48 hr after electroporation using the Alt-R Genome Editing Detection Kit, which provides the major components required for T7EI endonuclease assays.

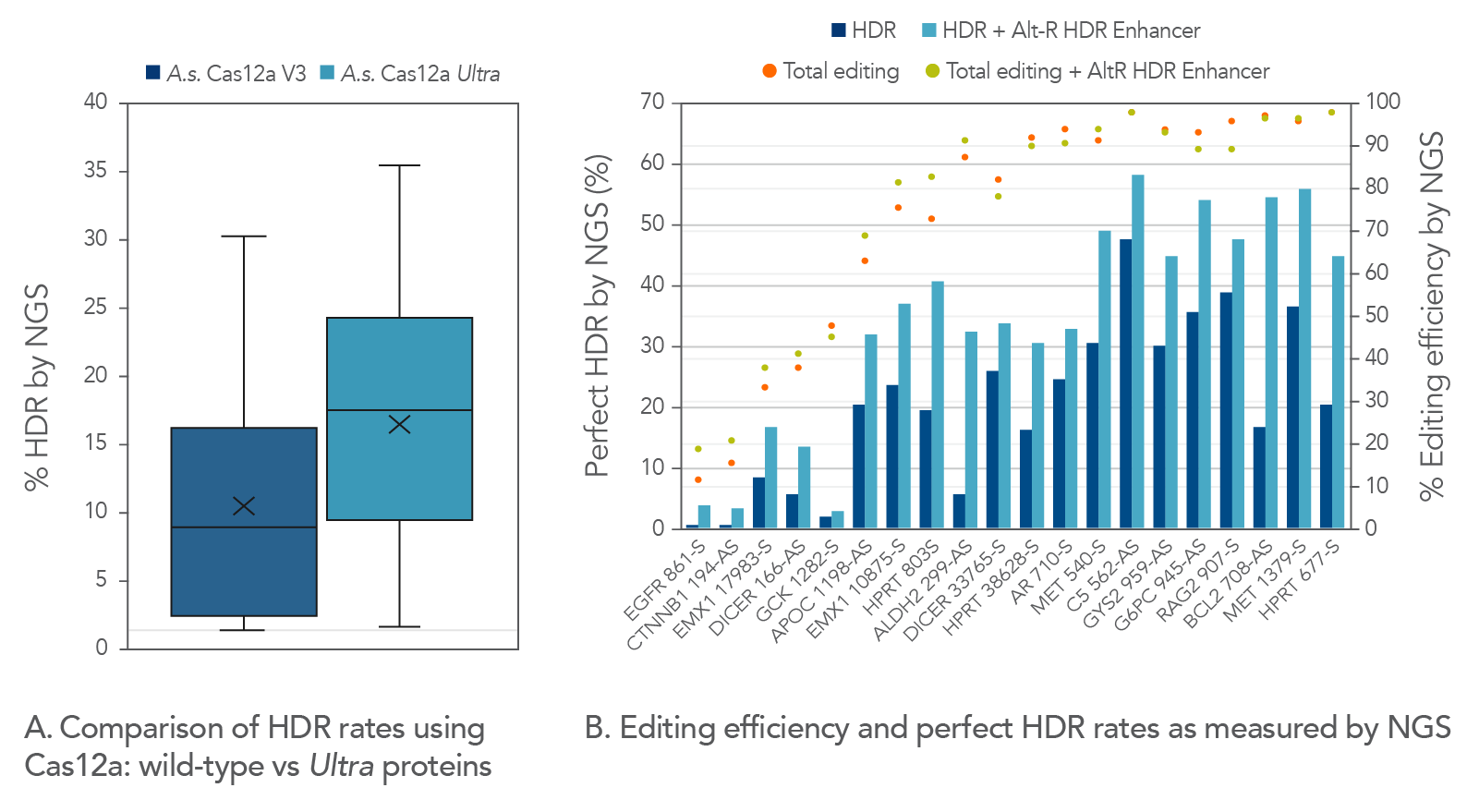

Figure 7. High HDR rates are achieved with Alt-R A.s. Cas12a Ultra, HDR donor templates, and Alt-R HDR Enhancer. (A) Comparison of HDR rates achieved with wild-type A.s. Cas12a V3 or A.s. Cas12a Ultra nuclease complexed to 101 different crRNAs co-delivered into Jurkat cells with an HDR template (modified Ultramer oligo) using the Cas12a electroporation enhancer. (B) Jurkat cells were electroporated using the Cas12a electroporation enhancer with A.s. Cas12a RNPs targeting various genomic loci along with an HDR template (modified Ultramer oligo) containing a 6-base insert; cells were further treated with Alt-R HDR Enhancer. Editing efficiency and % perfect HDR were measured with NGS (rhAmpSeq amplicon sequencing). HDR rates >50% were observed in Jurkat cells, a cell line with typically low rates of HDR.
- Alt-R A.s. Cas12a Ultra nuclease dramatically increases editing efficiency, making the CRISPR-Cas12a system as useful and reliable as the S.p. Cas9 system.
- TTTV PAM site selection, in combination with Alt-R Cas12a Electroporation Enhancer, typically results in greater than 90% editing efficiency with most guides.
- Alt-R A.s. Cas12a Ultra nuclease is a universal Cas12a solution for animal and plant systems.
- HDR rates are often doubled with the use of Alt-R A.s. Cas12a Ultra nuclease.
For guidelines for achieving high rates of homology-directed repair with CRISPR-Cas12a (Cpf1), please see our DECODED article here. To hear us discuss these experiments and answer audience questions, view our webinar.
